Geared Eccentric Sander RO 90 DX FEQ-Plus ROTEX

Round tool that also sands in corners.

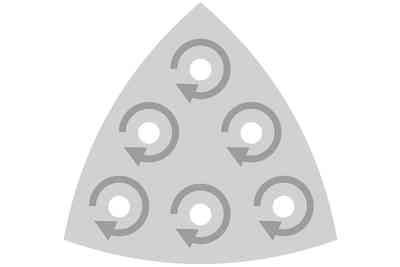

Four devices in one: Smaller pad. Greater versatility. The new ROTEX RO 90 geared eccentric sander with the tried-and-tested ROTEX principle makes quick work of coarse sanding, fine sanding and polishing tasks. Now suitable for working in corners: The FastFix interface can be used to replace the sanding or polishing pad with a triangular pad, and the ROTEX RO 90 becomes a delta sander.

  • Four tools in one: for coarse sanding, fine sanding, delta sanding and polishing. Resulting in low investment costs and savings on working time
  • Durable eccentric bearings, a double-sealed gear unit and a dustproof switch extend the service life of the machine
  • ROTEX rotary motion for convenient polishing – the reduced speed keeps the temperature low and prevents the polish from clouding or spraying off
  • FastFix sanding pad system, tool-less

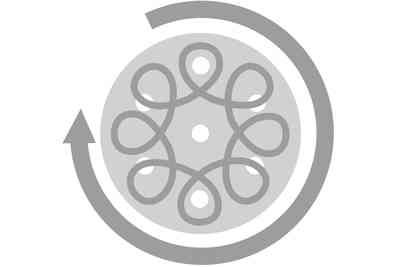

  • Eccentric motion for high-quality, scratch-free surfaces
  • Sanding up to the edge thanks to the Festool PROTECTOR
  • Ideal ergonomic grip positions

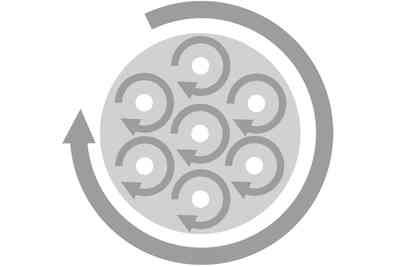

  • ROTEX rotary motion for efficient material removal
  • Effortless work thanks to a weight <1.5 kg

Items Include

  • FastFix sanding pad, Ø 90 mm (soft-HT)
  • StickFix sanding pad V93
  • Festool PROTECTOR
  • Qty. in pack: 1.00 Pieces
  • in SYSTAINER SYS 2 T-LOC

Product highlights

Achieve ideal results more quickly:

Four tools in one – for coarse sanding, fine sanding, polishing and as a delta sander. Pads can be changed quickly and without tools thanks to FastFix.

Convenient and safe:

Compact, handy and, thanks to its low weight, ideal for overhead work.

Achieve ideal results more quickly:

Four tools in one – for coarse sanding, fine sanding, polishing and as a delta sander. Pads can be changed quickly and without tools thanks to FastFix.

Product details

Main applications

  • Sanding off paint and varnishes on window frames
  • Ideal for vertical surfaces or overhead work
  • Sanding feather-and-groove joints
  • Sanding in angles, corners and edges – when work in tight spaces is required
  • Sanding louvres with a special pad
  • Performing SPOT REPAIR applications in body area

Performance features

Technical data

Power consumption 400 W
ROTEX rotary motion speed 260 – 520 min⁻¹
Eccentric motion speed 3 500 – 7 000 min⁻¹
Sanding stroke 3.00 mm
FastFix sanding pad dia. 90.00 mm
Dust extraction connection dia. 27 mm
Weight 1.50 kg

Noise and vibration values

Polishing: Total vibration average, Ah 400 W
Polishing: Uncertainty (noise) K 3.00 dB
Polishing: A-weighted sound power level, LWA 89.00 dB(A)
Polishing: A-weighted sound pressure level, LpA 78.00 dB(A)
Polishing: Uncertainty (vibration) K 1.50 m/s²
Triangular sanding: Total vibration average, Ah 5.00 m/s²
Triangular sanding: Uncertainty (noise) K 3.00 dB
Triangular sanding: Uncertainty (vibration) K 2.00 m/s²
Triangular sanding: A-weighted sound pressure level, LpA 81.00 dB(A)
Triangular sanding: A-weighted sound power level, LWA 92.00 dB(A)
Fine sanding: Total vibration average, Ah 5.00 m/s²
Fine sanding: Uncertainty (noise) K 3.00 dB
Fine sanding: Uncertainty (vibration) K 1.50 m/s²
Fine sanding: A-weighted sound power level, LWA 89.00 dB(A)
Fine sanding: A-weighted sound pressure level, LpA 78.00 dB(A)
Coarse sanding: Total vibration average, Ah 5.00 m/s²
Coarse sanding: Uncertainty (noise) K 3.00 dB
Coarse sanding: A-weighted sound pressure level, LpA 78.00 dB(A)
Coarse sanding: Uncertainty (vibration) K 1.50 m/s²
Coarse sanding: A-weighted sound power level, LWA 89.00 dB(A)

Brochures and operating instructions

Op. Instruct.
(PDF | 5MB)
Safety instruction
(PDF | 552KB)
RO 90 DX label
(PDF | 172KB)
